ANVIX^™ Prefabricated Pond Liners.

ANVIX™ Prefab is a factory-prefabricated pond liner solution developed specifically for small to medium-sized outdoor aquaculture ponds.

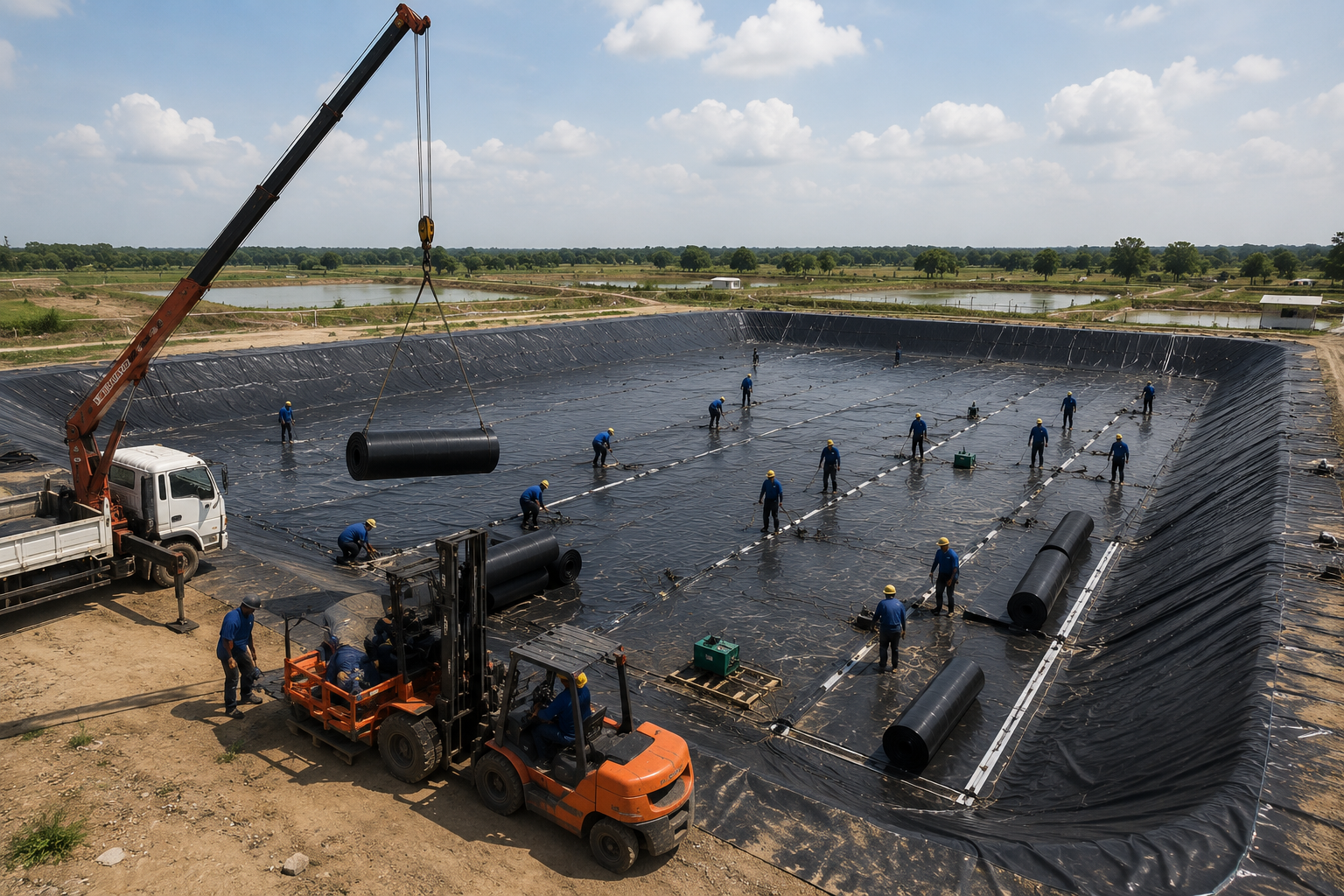

Unlike conventional pond lining systems that require extensive on-site cutting and welding, ANVIX™ Prefab liners are factory fabricated to the required pond dimensions and supplied ready for installation — helping reduce installation time, on-site labour and dependence on specialised contractors.

Available in selected RPE and LLDPE constructions, ANVIX™ Prefab combines high mechanical strength, flexibility and outdoor durability. Aquaculture-suitable grades can be supplied with UV stabilisation and enhanced tear and puncture resistance for demanding outdoor fish and shrimp farming environments.

By combining factory-controlled fabrication with ready-to-install convenience, ANVIX™ Prefab provides a practical alternative for aquaculture farms that do not require large-scale conventional geomembrane installation.

Reinforced strength. Engineered for prefabrication.

RPE is a multi-layer reinforced polyethylene liner designed to combine high mechanical strength with flexibility for prefabricated pond applications.

A high-strength woven HDPE reinforcement forms the structural core, while LDPE or LLDPE outer layers on both sides provide waterproofing, flexibility and surface protection. Depending on the application requirements, the outer polyethylene layers can be selected to provide the required balance of flexibility, durability and fabrication performance. UV stabilizers are incorporated into the liner formulation to improve resistance against prolonged sunlight exposure and outdoor ageing.

The reinforced construction provides excellent tensile and tear resistance while allowing large liner panels to be factory welded and fabricated to the required pond dimensions.

For aquaculture applications, ANVIX™ RPE liners can be supplied in different weights, thicknesses and specifications according to pond size, site conditions and required performance.

Flexible. Conformable. Built around the pond.

LLDPE is a flexible polyethylene geomembrane produced without a woven reinforcement layer. Its homogeneous structure provides excellent elongation and flexibility, allowing the liner to conform closely to pond bases, slopes, corners and irregular ground profiles.

Compared with reinforced polyethylene, LLDPE relies on the properties and thickness of the polymer membrane itself rather than an internal woven reinforcement. Its higher elongation makes it particularly suitable where ground movement, settlement or complex pond geometry requires greater liner flexibility.

ANVIX™ LLDPE prefabricated liners can be supplied in different thicknesses and dimensions according to pond design and application requirements.

Reinforced polyethylene composite*

Designed to provide a continuous impermeable barrier for aquaculture ponds.

Reinforced construction provides resistance against puncture and tearing during handling and service.

Flexible construction allows the liner to conform to pond floors, slopes and profiles.

Designed for prolonged outdoor exposure and aquaculture environments.

Heat-weldable construction enables strong factory-fabricated seams.

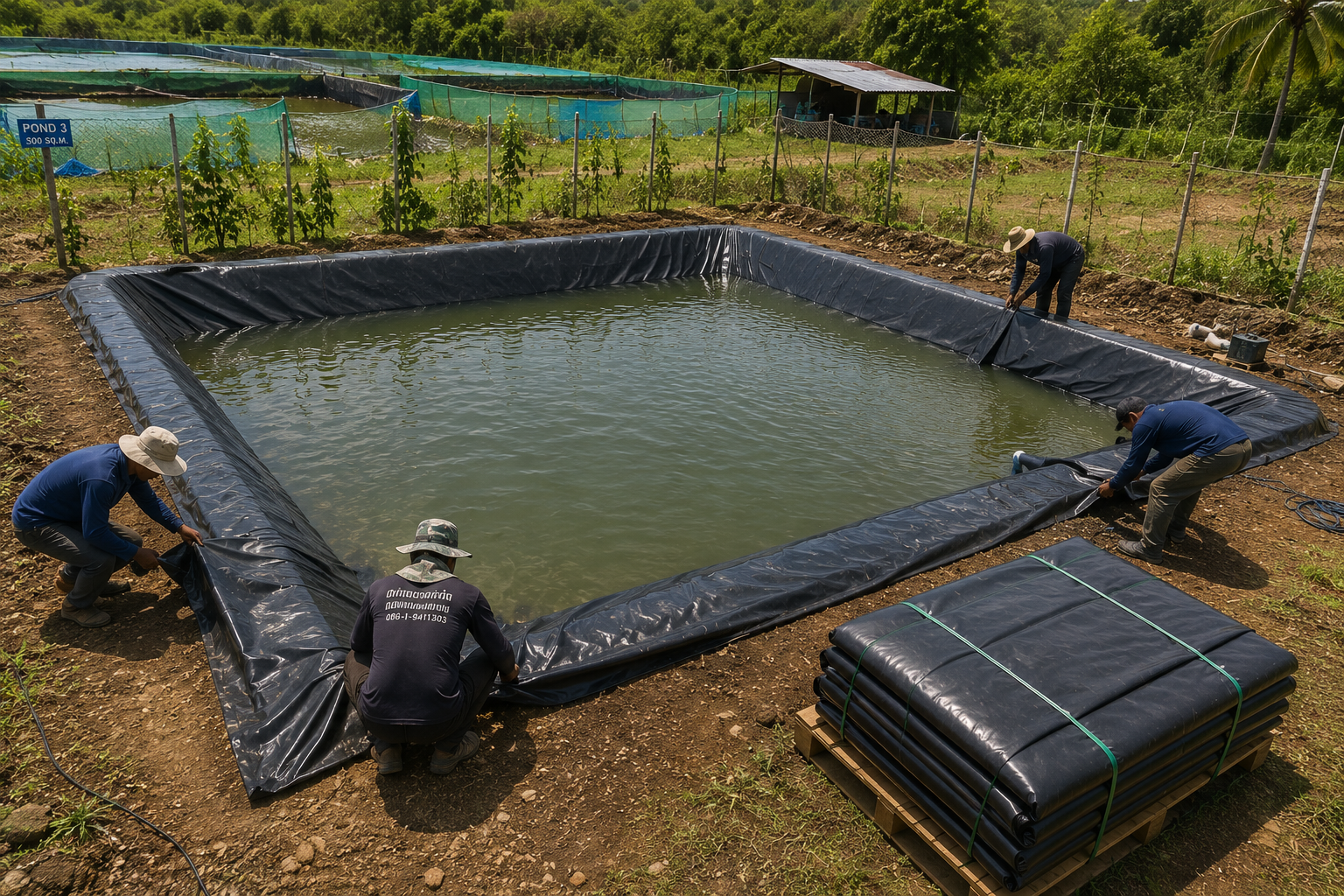

Fabricated and welded before delivery to reduce fabrication work at the farm.

Delivered as a finished or preconfigured liner for simplified site deployment.

Minimises dependence on specialised field-welding equipment and crews.

Less on-site fabrication helps shorten the overall installation process.

Controlled folding and palletised delivery make positioning and deployment easier.

Fabricated according to individual pond dimensions rather than being limited to standard roll widths.

Replace the liner without replacing the whole tank structure.

Built to perform in outdoor aquaculture conditions.
